• LT315/70R17 all-terrain BSW tires
• 17" cast aluminum wheels w/painted & machined finish
• Full-size spare tire w/lock, underframe winch-type carrier, safety catch
• Hood w/air extractors
• Front/rear microcellular jounce bumpers
• Unique front bumper w/foundry finish & body-color fascia
• Unique rear bumper w/painted foundry finish

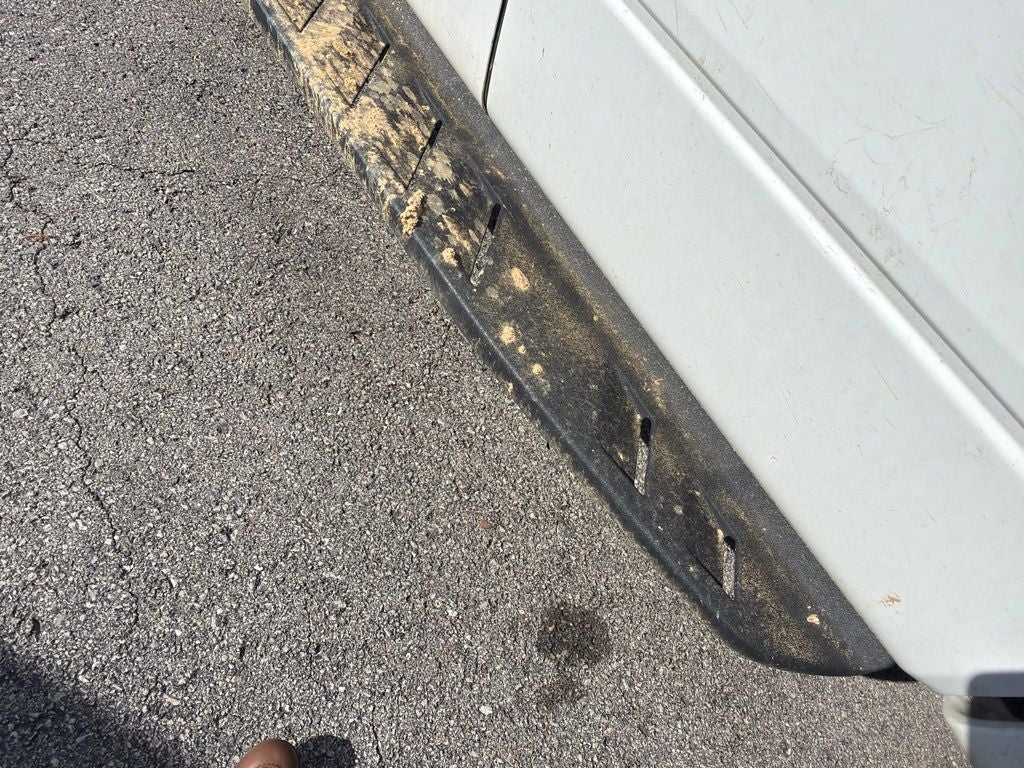

• Cast aluminum running boards
• Unique front/rear wheel lip moldings w/foundry finish
• Black front/rear stone cuffs
• Outer scuff pad

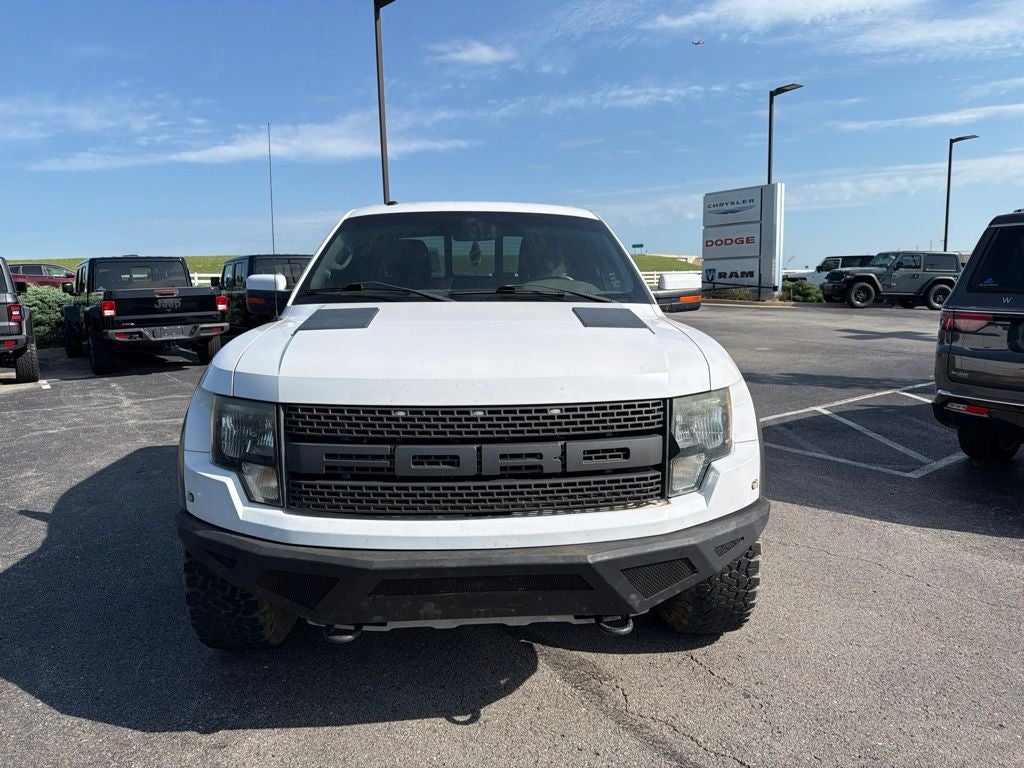

• Brick wall front grille
• Blacked out headlamps & tail lamps
• Autolamp -inc: automatic on/off headlamps
• Cargo lamp integrated w/high mount stop light
• Integrated marker lights
• Black pwr side mirrors
• Pwr sliding rear window -inc: defroster
• Rear privacy tint glass
• Variable speed intermittent wipers
• Unique front license plate bracket *STD in states where required by law*
• Flared front fenders w/air extractors
• Black door & tailgate handles
• Unique tailgate badge

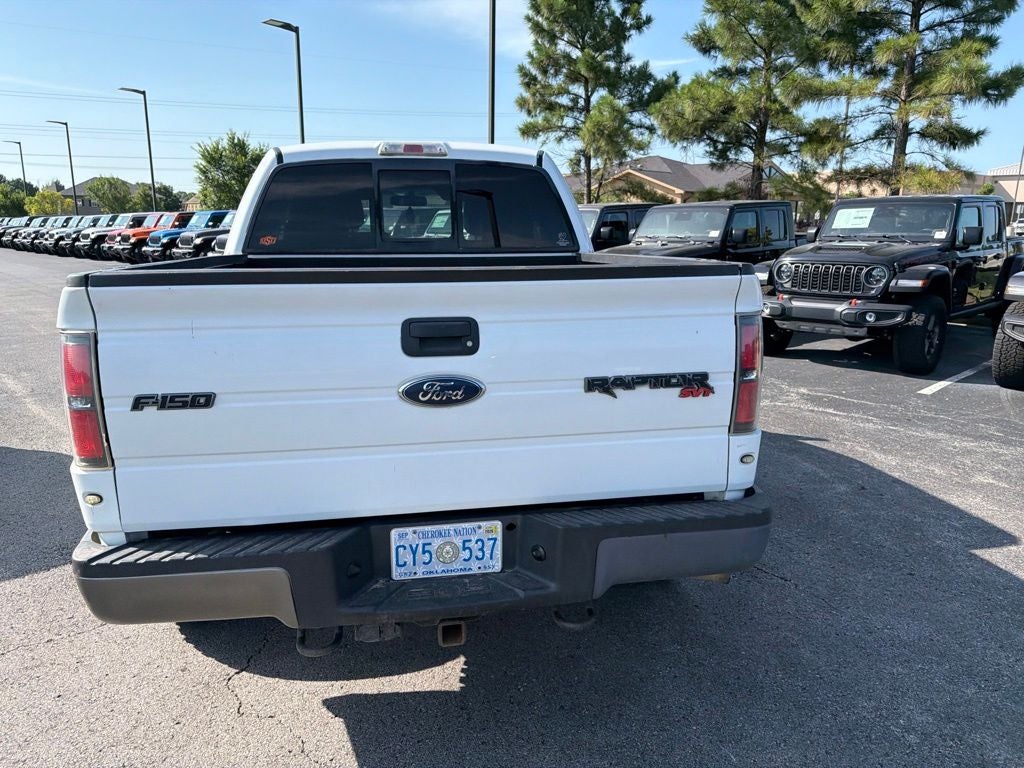

• Removable tailgate w/key lock & lift assist

• AM/FM stereo w/CD player -inc: clock, speed compensated volume control, aux audio input jack
• SIRIUS satellite radio -inc: roof-mounted antenna, (6) month subscription *N/A in Alaska or Hawaii*
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel controls, USB port

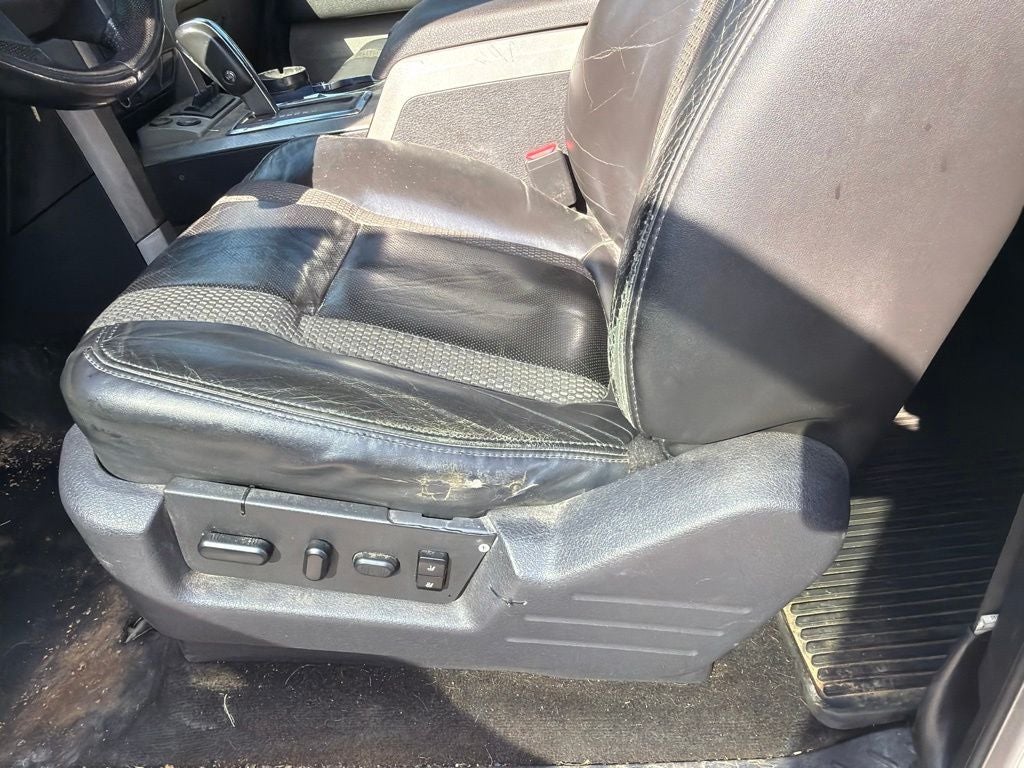

• Unique leather/cloth captains chairs w/6-way pwr driver seat, console, seat back bolsters
• Unique vinyl 60/40 flip-up rear split bench seat
• Unique rubber front & rear floor mats w/SVT logo
• Driver & front passenger door scuff plates
• Unique leather-wrapped steering wheel w/thumb pads, audio controls & memory
• Tilt steering column
• Display center -inc: warning messages & text functions
• Customer info display
• Outside temp gauge
• Pwr windows w/driver side 1-touch down
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Driver side Securicode keypad entry
• Remote keyless entry w/(2) fobs, illuminated entry & panic button
• SecuriLock anti-theft ignition (PATS)
• Manual air conditioning
• Chrome ring w/obsidian vanes air conditioning registers
• Rear window defroster
• Rear door cupholders
• Instrument panel mounted cigar lighter
• Front pwr point
• Rear pwr point
• Console top switches -inc: hill decent, easy off road mode, aux switch pack
• Unique IP center stack & door trim applique finish
• Driver & front passenger covered visor vanity mirrors
• Front passenger side A-pillar grab handle

• Anti-lock braking system (ABS)
• AdvancTrac w/roll stability control (RSC)
• Dual stage driver & front passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Safety canopy front/rear outboard side curtain airbags
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Center front 2-point safety belt
• 3-point safety belts at all rear seat positions
• Rear door child safety locks
• Tire pressure monitoring system
• Dual note horn

RAPTOR LUXURY PKG

• heated 10-way pwr driver/front passenger seat w/driver memory
• dual zone electronic automatic temp control (DEATC) air conditioning
• AM/FM stereo w/Sony 6-disc in-dash CD & MP3 changer
• body-color pwr heated side mirrors w/turn signals/memory/drivers auto-dimming
• pwr adjustable pedals w/memory

6-SPEED ELECTRONIC AUTOMATIC TRANSMISSION W/OD, TOW & HAUL MODE

• (STD)

PWR MOONROOF W/1-TOUCH OPEN & CLOSE

• over head console w/single storage bin

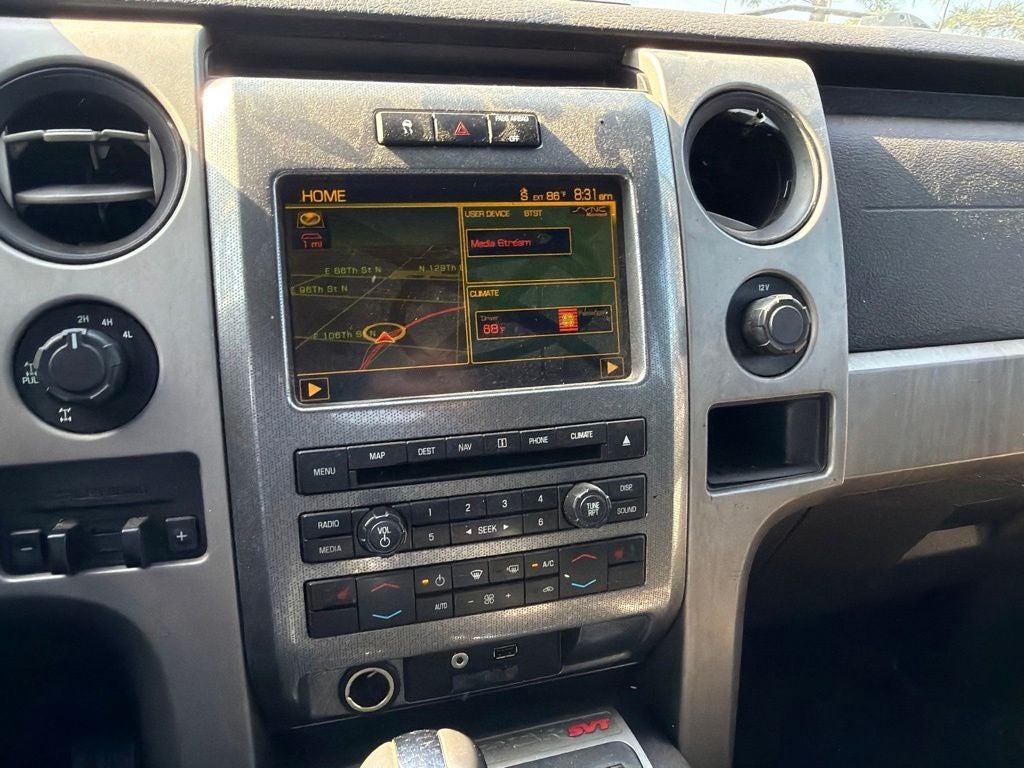

NAVIGATION SYSTEM W/IN-DASH SCREEN

• AM/FM stereo w/Sony CD/DVD/MP3 player
• internal hard disk drive
• subwoofer
• speed compensated volume control
• steering wheel mounted audio & navigation controls
• auto-dimming rearview mirror

6.2L 2V EFI V8 ENGINE

• body-color pwr side mirrors when 55L Luxury Pkg is not ordered

• 50 State Emissions
• Integrated Trailer Brake Controller
• 1 Touch Open/close Power Moonroof
• 6.2L 2V EFI V8 Engine
• Luxury Package
• Navigation/in-Dash Screen/Sony Single DVD/CD Radio
• Order Code 517A
• 12V power outlets 3 12V power outlets
• 17' Cast Aluminum Wheels
• 3-point seatbelt Rear seat center 3-point seatbelt
• 4 Speakers
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• 6-Way Power Adjustable Driver's Seat
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Adjustable pedals Power adjustable pedals
• Air Conditioning
• Air conditioning Yes
• Alloy wheels
• Alternator Type Alternator
• AM/FM radio: SIRIUS
• AM/FM Single CD w/Clock
• Amplifier
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Auto-dimming door mirror driver Auto-dimming driver side mirror
• Auto-dimming Rear-View mirror
• Aux input jack Auxiliary input jack
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Heavy-duty lead acid battery
• Beverage holders Front beverage holders
• Beverage holders rear Rear beverage holders
• Body panels Galvanized steel/aluminum body panels with side impact beams
• Box style Standard style pickup box
• Brake type 4-wheel disc brakes
• Bumper rub strip front Body-colored front bumper rub strip
• Bumpers front Black front bumper
• Bumpers rear Black rear bumper
• Cab mounted cargo light
• Cabback insulator
• CD location CD player located in the dashboard/instrument panel
• CD player
• CD-R compatible
• Cigarette lighter Front cigarette lighter
• Clearance lights Cab clearance lights
• Climate control Automatic climate control
• Clock Digital clock
• Compass
• Console insert material Metal-look console insert
• Corrosion perforation warranty 60 month/unlimited
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Delay-off headlights
• Digital signal processor
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door bins rear Rear door bins
• Door handle material Black door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Body-colored door mirrors
• Door mirror type Standard style side mirrors
• Door mirrors Power door mirrors
• Door panel insert Metal-look door panel insert
• Drive type Four-wheel drive
• Driver door bin
• Driver lumbar Driver seat with 2-way power lumbar
• Driver seat direction Driver seat with 8-way directional controls
• Driver vanity mirror
• Dual front impact airbags
• Dual front side impact airbags
• Dual-zone front climate control
• DVD-audio DVD-audio playback capability
• Electronic Locking w/4.10 Axle Ratio
• Electronic Stability Control
• Electronic stability control AdvanceTrac(R) w/Roll Stability Control(R) electronic stability control system with anti-roll
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 4 emissions
• Engine block material Iron engine block
• Engine Configuration Boss V8
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Boss 6.2L V-8
• Engine temperature warning
• Engine/electric motor temperature gauge
• External door locks External keypad door lock control
• External memory SYNC external memory control
• Fenders Black fender flares
• First-row sunroof First-row sliding and tilting glass sunroof with express open activation sunshade
• First-row windows Power first-row windows
• Floor console Full floor console
• Floor console storage Locking floor console storage
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering
• Floor mats Rubber front and rear floor mats
• Fog lights Front fog lights
• Folding door mirrors Manual folding door mirrors
• Folding rear seats 60-40 folding rear seats
• Front anti-roll bar
• Front anti-roll Heavy-duty front anti-roll bar
• Front beverage holders
• Front Bucket Seats
• Front Center Armrest
• Front fog lights
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front passenger lumbar Front passenger seat with 2-way power lumbar
• Front reading lights
• Front seat upholstery Cloth and leather front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front side impact airbag driver Seat mounted side impact driver airbag
• Front side impact airbag passenger Seat mounted side impact front passenger airbag
• Front wheel independent suspension
• Fuel Type Flex Fuel
• Fully automatic headlights
• Gearshifter material Chrome gear shifter material
• Glove box Standard glove box
• Grille style Black grille
• GVWR: 6,950 lbs Payload Package
• Handsfree Bluetooth® handsfree wireless device connectivity
• HD front springs Heavy-duty front springs
• Head airbag Driver and passenger head protection airbag
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors Heated driver and passenger side door mirrors
• Heated front seats Heated driver and front passenger seats
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Hill control Hill descent control
• Ignition Spark ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer SecuriLock immobilizer
• Instrumentation display Analog instrumentation display
• Integrated navigation Integrated navigation system with voice activation
• Interior accents Chrome interior accents
• Interior courtesy lights Fade interior courtesy lights
• Internal storage GB 10 GB internal storage
• Internal storage Internal storage capability
• Internet access Selective service internet access
• Key in vehicle warning
• Keyfob keyless entry
• Leather steering wheel
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for fuel, washer fluid and brake fluid
• Low tire pressure warning
• Memory settings Memory settings include: door mirrors and pedals
• Number of airbags 6 airbags
• Number of beverage holders 8 beverage holders
• Number of doors 4 doors
• Number of first-row screens 1 total number of 1st row displays
• Number of memory settings 2 memory settings
• Occupancy sensor Airbag occupancy sensor
• Occupant sensing airbag
• Oil pressure gauge
• Oil pressure warning
• One-touch down window Driver one-touch down window
• Outside temperature display
• Overdrive transmission
• Overhead airbag
• Overhead airbags Curtain first and second-row overhead airbags
• Overhead console
• Overhead console Mini overhead console
• Overhead console storage
• Paint Non-metallic paint
• Panel insert Metal-look instrument panel insert
• Panic alarm
• Passenger door bin
• Passenger doors rear left Reverse opening left rear passenger door
• Passenger doors rear right Reverse opening right rear passenger door
• Passenger seat direction Front passenger seat with 8-way directional controls
• Passenger vanity mirror
• Perimeter approach lighting Remote activated perimeter approach lighting
• Power door mirrors
• Power driver seat
• Power passenger seat controls Passenger seat power reclining, lumbar support, cushion tilt, fore/aft control and height adjustable control
• Power steering
• Power windows
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Premium radio Sony radio
• Radiator Heavy-duty radiator
• Radio AM/FM/SIRIUSsatellite
• Radio data system
• RDS Radio data system (RDS)
• Real time traffic SIRIUS Travel Link real-time traffic
• Rear bumper step
• Rear cargo door Tailgate
• Rear console climate control ducts
• Rear head restraint control 2 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear locking differential Driver selectable rear locking differential
• Rear seat direction Front facing rear seat
• Rear seat folding position Fold-up rear seat cushion
• Rear seat upholstery Vinyl rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Split-bench rear seat
• Rear Springs Heavy-duty rear springs
• Rear step bumper
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear windshield Power rear windshield
• Rearview mirror Auto-dimming rear view mirror
• Remote keyless entry
• Remote panic alarm
• Roadside warranty 60 month/60,000 miles
• Running boards
• Seatback storage pockets 2 seatback storage pockets
• Seatbelt pretensioners Front seatbelt pretensioners
• Seatbelt pretensioners number 2 seatbelt pre-tensioners
• Seating capacity 5
• Second-row windows Power second-row windows
• Seek scan
• Selectable mode transmission
• SIRIUS Satellite Radio
• Skid plate 1 underbody skid plate
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 10 speakers
• Speakers Sony speakers
• Special paint Monotone paint
• Speed control
• Speed sensitive volume
• Split folding rear seat
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering mounted audio control Steering wheel mounted audio controls
• Steering type Rack-pinion steering
• Steering wheel material Leather steering wheel
• Steering wheel mounted audio controls
• Steering wheel tilt Manual tilting steering wheel
• Suspension Off-road ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Double wishbone front suspension
• Suspension type rear Leaf spring rear suspension
• SYNC
• Tachometer
• Tailgate control Manual tailgate/rear door lock
• Tailpipe Stainless steel single exhaust
• Temperature display Exterior temperature display
• Tilt steering wheel
• Tinted windows Deep tinted windows
• Tires LT315/70SR17 AT BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Tow hooks rear 2 rear tow hooks
• Towing brake controller Trailer brake controller
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing trailer sway Trailer sway control
• Towing wiring harness Trailer wiring harness
• Traction control
• Traction control All-speed ABS and driveline traction control
• Transfer case Electronic transfer case shift
• Transmission 6-speed automatic
• Transmission electronic control
• Transmission oil cooler
• Transmission temperature gauge Transmission fluid temperature gauge
• Transmission Type Automatic
• Trip odometer
• Turn signal in door mirrors Turn signal indicator in door mirrors
• Unique Leather/Cloth Front Bucket Seats
• Upfitter switches
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver mirror Driver visor mirror
• Visor passenger mirror Passenger visor mirror
• Voice activated audio Voice activated audio controls
• Wheels 17 x 8.5-inch front and rear machined aluminum wheels
• Window Trim Black side window trim
• Wipers Variable intermittent front windshield wipers
• Wireless streaming Bluetooth® wireless audio streaming

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Front (lbs): 3750
• Gross Axle Wt Rating - Rear (lbs): 3500
• Curb Weight - Front (lbs): 3376
• Curb Weight - Front (lbs): 3327
• Curb Weight - Rear (lbs): 2605
• Curb Weight - Rear (lbs): 2581
• Gross Vehicle Weight Rating Cap (lbs): 6950
• Gross Combined Wt Rating (lbs): - TBD -
• Gross Combined Wt Rating (lbs): 12300
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 900
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: - TBD -
• Rear Tire Order Code: - TBD -
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT315/70R17D
• Rear Tire Size: LT315/70R17D
• Spare Tire Size: LT315/70R17D
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 133.3
• Length, Overall w/o rear bumper (in): 220.9
• Width, Max w/o mirrors (in): 86.3
• Height, Overall (in): 78.4
• Overhang, Front (in): 38.5
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 145
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 39.7
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 38.7
• Second Leg Room (in): 33.4
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 65.4
• Summary
• Vehicle Name: Ford F-150
• Body Style: SuperCab 5.5' Styleside
• Body Code: 133" WB
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
