• Paint, solid
• Bumper, front, chrome, with Gray lower
• Bumper, rear, chrome step, includes pad (Not available with (ZW9) Pickup bed, delete)
• Air dam, Gray
• Moldings, bodyside (Moldings are color-keyed and not available with (ZW9) Pickup bed delete. - Refer to Color and Trim Chart for compatibility)
• Wheel flares (Refer to Color and Trim chart for compatibility. Front only when (ZW9) Pickup bed delete is ordered)
• Grille, color-keyed surround, with chrome accent bar
• Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control
• Daytime running lamps, includes automatic exterior lamp control
• Lamps, dual cargo area lamps
• Mirrors, outside rearview, manual folding, power, heated, Black (Upgradeable to (DL3) Mirrors, outside rearview, power folding, power, heated or (DPF) Mirrors, outside rearview, power, heated, camper-style.)
• Glass, Solar-Ray light tinted, all windows
• Wipers, intermittent, front, wet-arm with pulse washers

• Seat trim, Custom Cloth
• Seats, front 40/20/40 split-bench, 3-passenger, driver and passenger manual reclining, center fold-down armrest with storage, adjustable outboard head restraints and storage pockets on Extended Cab Models (Not available with (UC6) Sound system, ETR AM/FM stereo with 6-disc CD changer.)
• Seats, rear bench, folding, 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab Models.)
• Floor covering, color-keyed carpeting and rubberized vinyl floormats (May be substituted with (BG9) Floor covering, rubberized vinyl)
• Steering wheel, leather-wrapped rim, Black, includes theft-deterrent locking feature
• Theft-deterrent system, PASSlock II
• Driver Information Center, monitors numerous systems depending on vehicle equipment
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle-up reminder, turn signal on
• Defogger, rear-window, electric (Not available with (A28) Window, rear sliding)
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Door locks, power
• Windows, power, includes driver and passenger express-down
• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• Air conditioning, dual-zone, manual, individual climate settings for driver and right front passenger
• Sound system, ETR AM/FM stereo with CD player, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, and Radio Data System (RDS) (Requires (AE7) Seats, front 40/20/40 split-bench. Upgradeable to (UB1) Sound system, ETR AM/FM stereo with CD and cassette player or (UC6) Sound system, ETR AM/FM stereo with 6-disc CD changer on Extended and Crew Cab Models. - Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models.)
• Cigarette lighter, on instrument panel
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside temperature indicator
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Console, overhead mini, includes map lights
• Assist handle, front passenger (Also includes rear outboard passenger assist on Extended and Crew Cab Models.)
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models.)

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Daytime running lamps, includes automatic exterior lamp control

HEAVY-DUTY POWER PACKAGE

• includes (LLY) Engine
• Duramax 6600 Turbo Diesel V8
• (M74) Transmission
• Allison 1000 5-speed automatic and (G80) Differential
• locking
• heavy-duty
• rear

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (with Manual Transmissions 300 HP [223.8 kW] @ 3000 rpm
• 520 lb.-ft. [702.0 N-m] @ 1600 rpm) (with Automatic Transmissions 310 HP [231.2 kW] @ 3000 rpm
• 605 lb.-ft. [816.8 N-m] @ 1600 rpm) (Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (K05) Engine block heater
• and (K47) Air cleaner
• high capacity)

TRANSMISSION, ALLISON 1000 5-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE, TOW/HAUL MODE

• (KNP) Cooling
• external transmission oil cooler and electronic engine grade braking

PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

SEAT ADJUSTER, POWER DRIVER 6-WAY

• (Included with (A95) Seats
• front reclining buckets. -Included with (**2) Seat trim
• leather on Extended and Crew Cab Models)

GLASS, SOLAR-RAY DEEP TINTED

• (all windows except light tinted glass on windshield)

GVWR, 9200 LBS. (4173 kg)

• (STD)

ENGINE BLOCK HEATER

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8)

AIR CLEANER, HIGH-CAPACITY

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8. -Included with (Z82) Trailering equipment
• heavy-duty. -Included with (VYU) Snow plow prep package)

TRANSFER CASE, ELECTRONIC SHIFT

• includes push-button controls

SKID PLATE PACKAGE

• includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• frame-mounted shields -Included with (VYU) Snow Plow Prep Package.)

WHEELS, 4-16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG POLISHED FORGED ALUMINUM

• includes chrome center caps and steel spare

BATTERY, HEAVY-DUTY DUAL, 770 COLD-CRANKING AMPS

• includes rundown protection and retained accessory power

SOUND SYSTEM, ETR AM/FM STEREO WITH CD AND CASSETTE PLAYER

• includes seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume
• TheftLock
• Radio Data System (RDS) and 4-speakers on Regular Cab Models
• 6 speakers on Extended and Crew Cab Models (with bucket seats UB1 includes Bose speaker system
• Bose amplifier and Bose subwoofer)

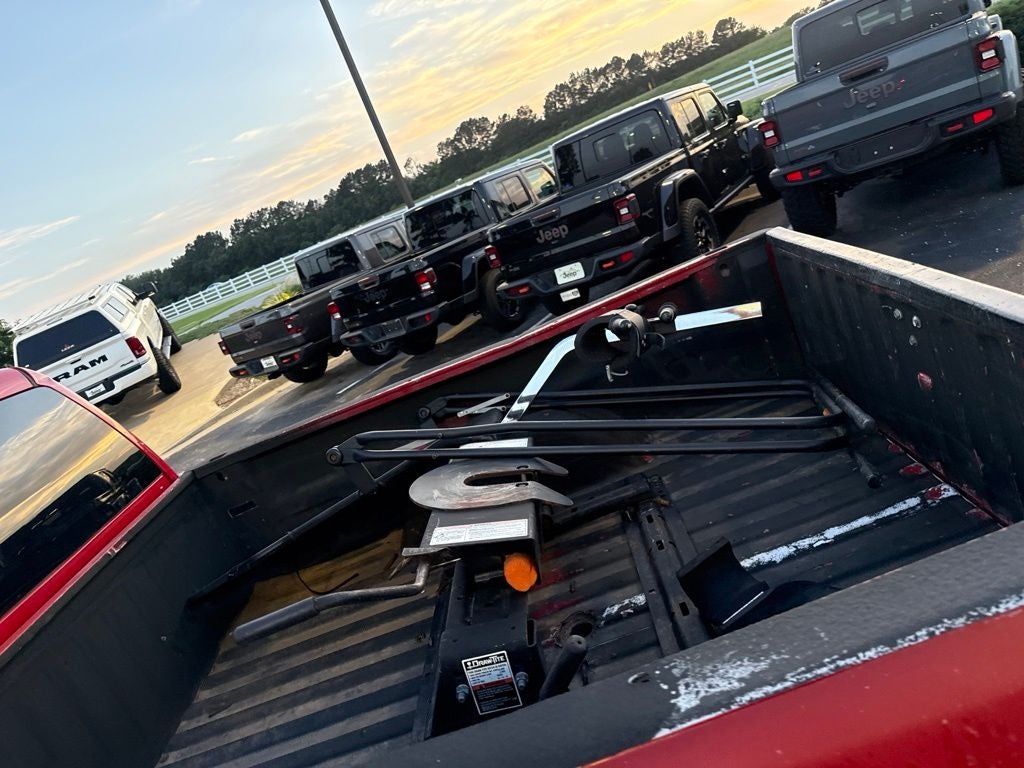

TRAILERING WIRING PROVISIONS, FOR CAMPER, 5TH WHEEL AND GOOSENECK TRAILER

• includes additional 8-way wiring harness routed to front of pickup box and added 7-way sealed connector for the trailer harness

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform
• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• 7-way to 4-way trailer adapter
• instrument panel jumper wiring harness for electric trailer brake controller
• and 1-way sealed connector for center high-mounted stop/brake lamp. Also includes (K47) Air cleaner
• high capacity

PAINT, SOLID

• (STD)

• 16' X 6.5' Polished Forged Aluminum Wheels
• 3.73 Rear Axle Ratio
• 6-Way Power Driver Seat Adjuster
• 9,200 lbs (4,173 Kgs) GVWR
• Camper Trailering Wiring Provisions
• Chrome Plated Tubular Assist Steps
• Dark Charcoal
• Dual HD 770 CCA Batteries
• Dual-Zone Automatic Air Conditioning
• Electronic Shift Transfer Case
• Engine Block Heater
• ETR AM/FM Stereo with CD and Cassette
• Federal Emissions Requirements
• Front 40/20/40 Split-Bench Seat
• HD Auxiliary External Transmission Oil Cooler
• Heavy-Duty Handling/trailering Suspension Package
• Heavy-Duty Trailering Equipment
• High-Capacity Air Cleaner
• Skid Plate Package
• Solar-Ray Deep Tinted Glass
• Steering Wheel Mounted Radio Controls
• Victory Red
• Heavy-Duty Power Package
• LS Decor 1SB
• LT245/75R16E On/off Road BW (5) Tires
• 12V power outlets 2 12V power outlets
• 16' X 6.5' Polished Forged Aluminum Wheels
• 3-point seatbelt Rear seat center 3-point seatbelt
• 4-Wheel Disc Brakes
• 4WD type Part-time 4WD
• ABS brakes
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air Conditioning
• Air conditioning Yes
• Alternator Type Alternator
• AM/FM radio
• Antenna Fixed audio antenna
• Armrests front center Front seat center armrest
• Armrests front storage Front seat armrest storage
• Armrests rear Rear seat center armrest
• Ashtray
• Audio storage Audio media storage unit
• Audio theft deterrent TheftLock audio system theft deterrent
• Auto door locks Auto-locking doors
• Auto headlights Auto on/off headlight control
• Auxiliary power take-off
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Beverage holders Front beverage holders
• Beverage holders rear Rear beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Bodyside insert Chrome bodyside insert
• Bodyside moldings Colored bodyside moldings
• Box style Standard style pickup box
• Brake type 4-wheel disc brakes
• Bumper rub strip front Gray front bumper rub strip
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Chrome front bumper
• Bumpers rear Chrome rear bumper
• Bumpers: chrome
• Cab mounted cargo light
• Cabback insulator
• Carpet door panel trim
• Cassette Cassette playerwith auto-reverse
• CD location CD player located in the dashboard/instrument panel
• CD Single-disc CD player
• Child door locks Manual rear child safety door locks
• Cigarette lighter Front cigarette lighter
• Climate control Automatic climate control
• Clock Digital clock
• Compass
• Compressor Intercooled turbo
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise control
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Door ajar warning
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Power door locks with 2 stage unlocking
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Door mirrors Power door mirrors
• Door trim insert Vinyl door trim insert
• Drive type Four-wheel drive
• Driver door bin
• Driver information center
• Driver seat direction Driver seat with 8-way directional controls
• Dual 770 CCA Heavy-Duty Batteries
• Dual front impact airbags
• Dual-zone front climate control
• Electronic Cruise Control w/Set & Resume Speed
• Emissions Federal emissions
• Engine block material Iron engine block
• Engine Configuration Duramax V8
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Duramax 6.6L V-8
• Engine temperature warning
• Engine/electric motor temperature gauge
• Equalizer Automatic audio equalizer
• Fenders Colored fender flares
• First-row windows Power first-row windows
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering
• Floor mats Rubber front and rear floor mats
• Folding door mirrors Manual folding door mirrors
• Folding rear seats 60-40 folding rear seats
• Front anti-roll bar
• Front anti-roll Front anti-roll bar
• Front beverage holders
• Front dual zone A/C
• Front head restraint control Manual front seat head restraint control
• Front head restraints Height adjustable front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Passenger front impact airbag
• Front reading lights
• Front seat type Split-bench front seat
• Front seat upholstery Premium cloth front seat upholstery
• Front seatback upholstery Cloth front seatback upholstery
• Front wheel independent suspension
• Fuel Type Diesel
• Fully automatic headlights
• Gearshifter material Urethane gear shifter material
• Glove box Standard glove box
• Grille style Black grille with chrome surround
• Headlight type Reflector headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Heated door mirrors Heated driver and passenger side door mirrors
• Heavy-Duty Auxiliary External Transmission Oil Cooler
• Heavy-Duty Rear Locking Differential
• High mount stop light High mounted center stop light
• Ignition Compression ignition system
• Ignition type Mechanical
• Illuminated entry
• Immobilizer PASSLock II immobilizer
• Instrumentation display Analog instrumentation display
• Interior courtesy lights Delay interior courtesy lights
• Key in vehicle warning
• Keyfob keyless entry
• Limited slip differential Mechanical limited slip differential
• Lock-up transmission
• Locking hub control Auto locking hub control
• Low level warnings Low level warning for oil, coolant, fuel and washer fluid
• Manual driver seat controls Driver seat manual reclining
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Multiple headlights Multiple enclosed headlights
• Number of airbags 2 airbags
• Number of door entry light(s) 4 door entry light(s)
• Number of doors 4 doors
• Oil pressure gauge
• Oil pressure warning
• One-touch down window Driver and passenger one-touch down windows
• Overdrive transmission
• Overhead console Mini overhead console
• Overhead console storage
• Paint Non-metallic paint
• Passenger door bin
• Passenger doors rear left Conventional left rear passenger door
• Passenger doors rear right Conventional right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Passenger vanity mirror
• Power driver seat controls Driver seat power cushion tilt, fore/aft control and height adjustable control
• Power steering
• Powertrain type ICE
• Powertrain warranty 36 month/36,000 miles
• Radiator
• Radio AM/FM
• RDS Radio data system (RDS)
• Rear bumper step
• Rear cargo door Tailgate
• Rear Chrome Step Bumper w/Pad
• Rear head restraint control 2 rear seat head restraints
• Rear head restraint control Manual rear seat head restraint control
• Rear head restraints Height adjustable rear seat head restraints
• Rear seat direction Front facing rear seat
• Rear seat folding position Flip forward cushion and rear seatback
• Rear seat upholstery Premium cloth rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear seats fixed or removable Fixed rear seats
• Rear seats Split-bench rear seat
• Rear Springs Regular grade rear springs
• Rear step bumper
• Rear under seat ducts Rear under seat climate control ducts
• Rear window defroster
• Rear windshield Fixed rear windshield
• Rearview mirror Auto-dimming rear view mirror
• Remote panic alarm
• Roadside warranty 36 month/36,000 miles
• Running lights Daytime running lights
• Seatback storage pockets 2 seatback storage pockets
• Seating capacity 6
• Second-row windows Power second-row windows
• Security system
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Side steps Side assist steps
• Skid plate 2 underbody skid plates
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 6 speakers
• Speakers Performance grade speakers
• Special paint Monotone paint
• Speed sensitive volume
• Split folding rear seat
• Split front seats 40-20-40 split-bench front seat
• Springs front Front torsion springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering mounted audio control Steering wheel mounted audio controls
• Steering type Re-circulating ball steering
• Steering wheel material Leather steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Suspension Heavy-duty ride suspension
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailpipe Stainless steel single exhaust
• Temperature display Exterior temperature display
• Tilt steering wheel
• Tinted windows Deep tinted windows
• Tires LT245/75SR16 AT BSW front and rear tires
• Tow hooks front 2 front tow hooks
• Towing class Class IV tow rating
• Towing hitch Trailer hitch
• Towing wiring harness Trailer wiring harness
• Transfer case Electronic transfer case shift
• Transmission Allison 1000 5-speed automatic
• Transmission electronic control
• Transmission fluid temperature warning Transmission fluid temp warning
• Transmission oil cooler
• Transmission temperature gauge Transmission fluid temperature gauge
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn signal warning Turn signal on warning
• Variable panel light Variable instrument panel light
• Variably intermittent wipers
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver expandable coverage Driver visor with expandable coverage
• Visor passenger expandable coverage Passenger visor with expandable coverage
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4670
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3333
• Curb Weight - Rear (lbs): 2427
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: QIW
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIW
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZHH
• Spare Tire Order Code: QIZ
• Front Tire Size: LT245/75R16
• Rear Tire Size: LT245/75R16
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 2335
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Aluminum
• Front Wheel Material: Steel
• Rear Wheel Material: Aluminum
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.6
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 237.3
• Width, Max w/o mirrors (in): 79.7
• Height, Overall (in): 77.0
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.1
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 59.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
